SECTION 7.2.1.2.7 - MATTER TYPES ASCII EXPORT
USAGE: To export a file detailing
all or a subset of the information on the Matter Type master-file. This export file
can then be used as input to other programs, such as Spreadsheets, Databases
and Word-processors. This gives you the flexibility to format reports, etc. in
ways not otherwise available in T.L.A.
The file will always be created in Matter Type code
order.
DISCUSSION: Initially the screen is
cleared and you will be asked, INCLUDE ALL MATTER
TYPES?. If you
enter, Y all Matter Types on file
will be sent to the export file and no further limit questions will be asked. (Go to the EXPORT FILE question.) If you press <ESC> you will be returned to the MATTER TYPES MENU. If you enter N, the following series of
questions will appear:
FROM MATTER TYPE This is the lower limit of the Matter Type code.
Here you enter the code of the first Matter Type code you wish printed. The
default answer is blank. This will start printing from the start of the Matter
Types file.
TO MATTER TYPE This is the upper limit of the Matter Type code.
Here you enter the code of the last Matter Type you wish printed. The default
answer is zzz. This will end printing at
the end of the Matter Types file. This entry must not be less than the starting
Matter Type code. If you choose the default for both questions all Matter Types
will be included.
At each point, when answering the above questions,
you can press <ESC> and the program will reset
and return you to the MATTER TYPES MENU.

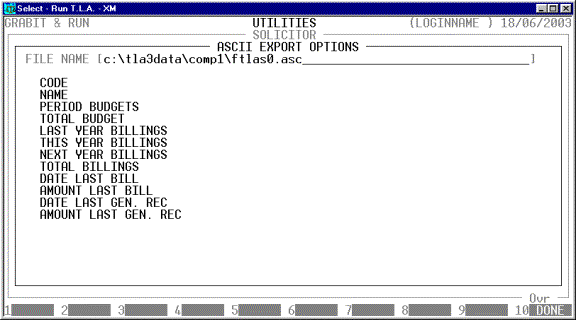

Next you will be presented with a page full of
questions. These relate to the exact fields and nature of the proposed export
file:
FILE NAME This field contains the name of the file you wish to
create. The default name is #FTLAM0.CSV (where # is replaced by the data directory name, eg. C:\TLA3DATA\COMP1\). However, this can be changed to any valid
DOS (or UNIX) path name. Be very careful if you enter a name suffixed by DAT, KEY, BAT, EXE or COM as it is possible to overwrite normal files used by T.L.A. In a DOS
environment, it is also possible to choose a name such as PRN or COM1 so that the export will be
sent directly to a printer or a communications port. T.L.A. will automatically
truncate the name from the first space encountered, so do not leave embedded
spaces or leading spaces in the name. T.L.A. will warn you if the file you are
about to create already exists.
FIELD NAMES Each field available in the
master-file may be individually chosen for export. Highlighted fields will be
exported. Low-lighted fields will be skipped. To toggle a field from highlight
to low-light, move the highlight bar over that filed and press <Enter> or the <Space> bar. You must choose to
export at least one field.
There are also function keys available for
manipulating FIELD NAMES:
<F4> This will return you to the FILE NAME entry.
<F5> This will highlight (export) all fields.
<F6> This will low-light (skip) all fields.
<F8> This will restore the field choices to the state
that they were before you entered the program.
<F9> This will open a screen that allows you to choose
the format of the fields exported. For further details, see APPENDIX B.
<F10> When you have finished choosing the fields you wish
exported, press <F10> to start the export
process.
When you have entered all the above information,
press <F10> and you will be asked START FILE CREATION? If you answer N, the
program will reset and return you to the MATTER
TYPES MENU. If you enter Y, the screen will clear and
the Matter master-file will be read in. During this time the computer will be
selecting account records according to the selection criteria you have just
entered will start writing the selected fields to the export file.
Like other reports, it is possible to stop the
export of the ASCII file by pressing <ESC>. However, the ASCII file
will have been created up to the point where you stopped it.
When the report has completed, T.L.A. will return
you to the MATTER TYPES MENU.
